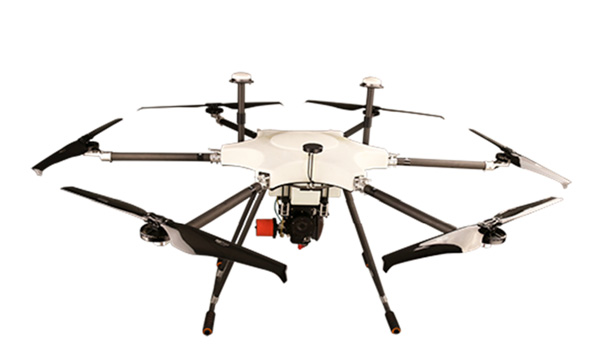

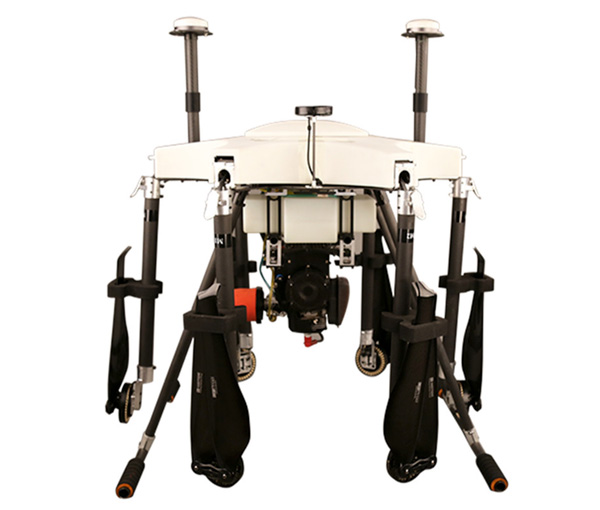

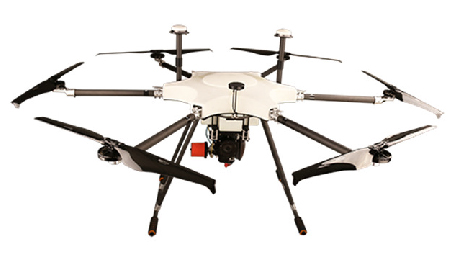

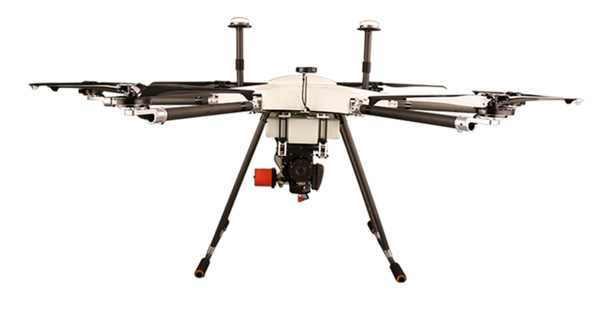

Hexacopter Hybrid Unmanned Aerial Vehicle( UAV) CN- X6H

Hexacopter hybrid UAV parameters

Symmetry motor wheelbase	1576±10mm
Center frame max size	600mm±10mm
Propeller size	736.6±1mm
Max wingspan size	2313±20mm
Fuselage height	to top cap 665±10mm to differential antenna 723mm±10mm
Standard take-off weight	16±0.2Kg
Safe take-off weight	≤19Kg
Max load weight	3Kg
Standard hover time when filled with oil	≥180min
Max flight speed	15m/s
Max climb speed	4 m/s
Relative flight height	1000m
Max work elevation	3000m
Wind tolerance	≤14m/s
Work environment temp	-20 ~40
GPS hover accuracy	Level ±2m Vertical ±1m
Remote control distance	≤7km
Ground station control distance	≤10km

Safety

Flame resistance material for fuel tank, back-up batteries for emergency landing, one propeller lost dynamic protection for safe landing, whole vehicle design protection for fuel tank.

Environmental Suitability

Flyable at alpine area, sea region. Suitable for long distance flight within vertical 1000 m altitude. Widely served as a repeater, for long distance spy and surveillance

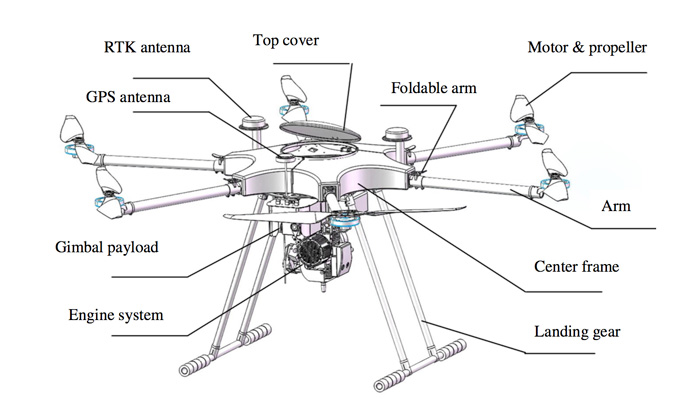

Unmanned Aerial Vehicle( UAV) Structure

Mainly adopting pipe fuselage design, hexacopter gas-electric hybrid Unmanned Aerial Vehicle( UAV) consists of fuselage, gas-electric hybrid drive system( Engine), back-up batteries, power board, flight control system, ESC, motor, propeller, foldable arms, landing gear and so on. Picture 1 shows the structure composition, and picture 2&3 shows the real entity.

Hexacopter hybrid UAV hover time test

Payload/kg	Fuel Charg/L	Take-off weight/kg	Endurance time	Remark
0	3.5	15.8	3h3min	Hover time with bare UAV
2	3.5	17.8	2h31min
2	2	16.5	7min	Back-up batteries endurance time

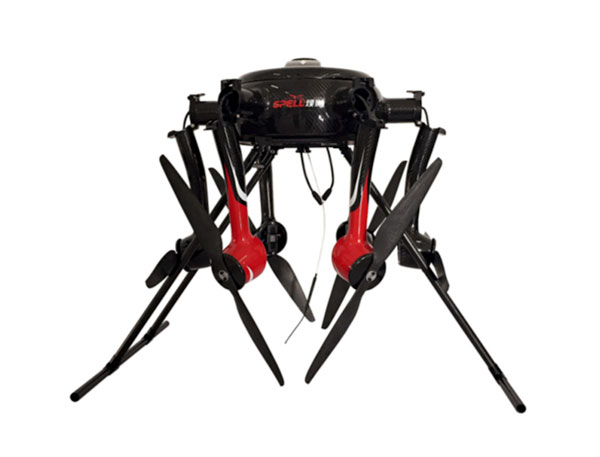

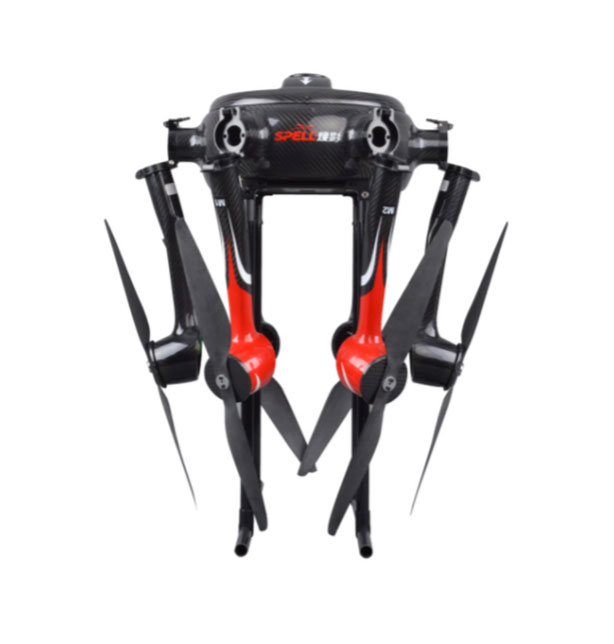

CN-Z6M

Features

• Carbon fiber integrated molding with high rigidity and light weight; supports more than 50 minutes flight time with 500g payload
• Innovative upturned arm design for flying stability and ensuring wind tolerance up to 12 m/s.
• Able to fly at elevation of 5000 m (16500 ft).
• Foldable arms design, get ready to fly within one minute
• Full HD 1080i/P real time video transmission, supports zoom, thermal, wide angle camera and so on payloads.
• Foldable structure, get ready to fly within 1 minute.
• Highly integrated rainproof gimbal unit with good rain performance, able to fly in the rainy day
• Intelligent flight control system with manual precise control and autonomous flight mode
• Finite difference GPS with high anti magnetism performance for accuracy position
• Flexible offer connecting interface for users’ equipments

Technical Parameters

Diagonal wheelbase	955+/-10mm
Max wingspan	1710+/-20mm
Standard take-off weight	8.1 +/-0.2kg
Max take-off weight	10.7+/-0.2 kg
Max payload weight	≥3 kg
Flight time	≥50 min (@8.1kg)
Wind loading rating	10 .8~13.9m/s
Max flight speed	12 m/s
Relative flight speed	1000 m(plain)
Max working altitude	4000 m
GPS position accuracy	vertical: ±1.5 m horizontal: ±2 m
Remote control distance	7km( up to the environment)
GS control distance	10 km ( up to the environment)

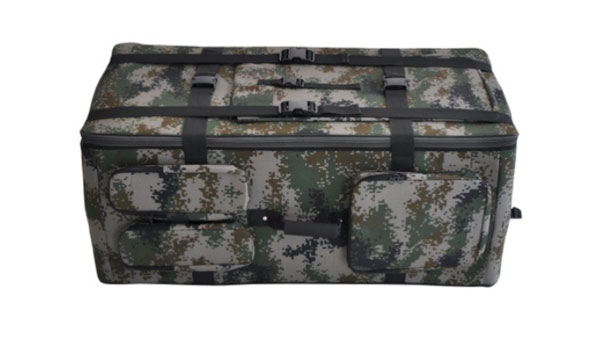

Package

Foldable sizes: 630*530*465mm

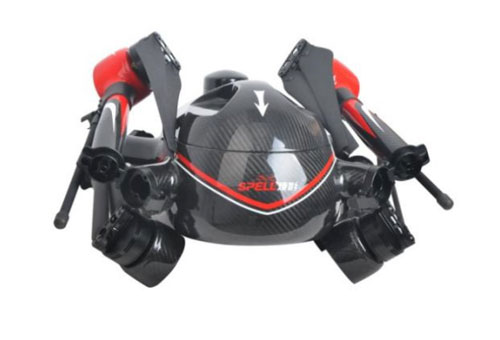

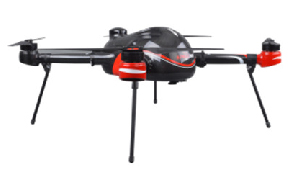

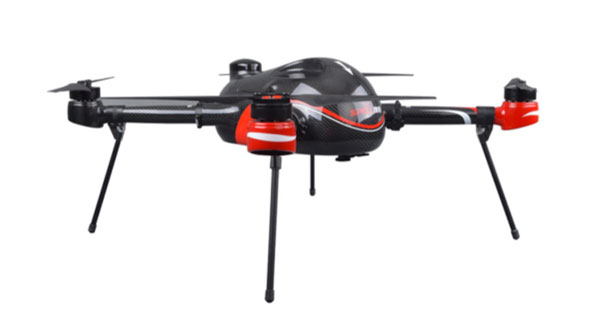

Foldable Quad copter CN-Z4M

As a professional foldable quad-copter auto researched and developed by The companycompany, CN- ZH4M adopts toolless fast assembly construction. Equipped by HD wireless video transmission system, it supports manual precise control and auto plane fight way with long flight time, good wind tolerance and unique rainproof features. It is the best choice for all kinds of surveillance, technical spy, frontier defense, search and rescue, road inspection, geographic surveying and mapping, power patrol, earthquake commanding and rescue and so on.

Features

• Full carbon fiber drone frame with high strength and light features; More than 40mins long flight time with 500g payload.
• Lateral foldable arms increase flight stability; Wind tolerance up to 10.8~13.9m/s.
• Able to fly at elevation of 5000m(16500ft)
• Toolless fast assemble structure, portable and easy carry;
• High integrated rainproof gimbal suit design; able to fly in the rain;
• Smart flight controller system supports manual precise operation and auto fly mode;
• Flexible offer connecting interface for customers’ equipments
• Full HD real time video transmission, supports HD 1080 i/p image; Multiple gimble payloads available, such as zoom camera, thermal camera, wide-angle lens camera and so on.

Technical Parameters

Diagonal wheelbase	940+/-10mm
Max wingspan	1490+/-20mm
Standard take-off weight	7.65+/-0.25kg
Max take-off weight	9.65+/-0.25kg
Max payload weight	2.5kg
Flight time	≥40 min (@7.65kg)
Wind loading rating	10.8~13.9m/s
Max flight speed	15 m/s
Relative flight speed	1000 m(plain)
Max working altitude	5000m
GPS position accuracy	vertical: ±1.5 m horizontal: ±1 m
Remote control distance	7km(up to the local electromagnetism environment)
GS control distance	10km(up to the local electromagnetism environment)

Package

700*590*350mm

Foldable size: 520*465*300mm

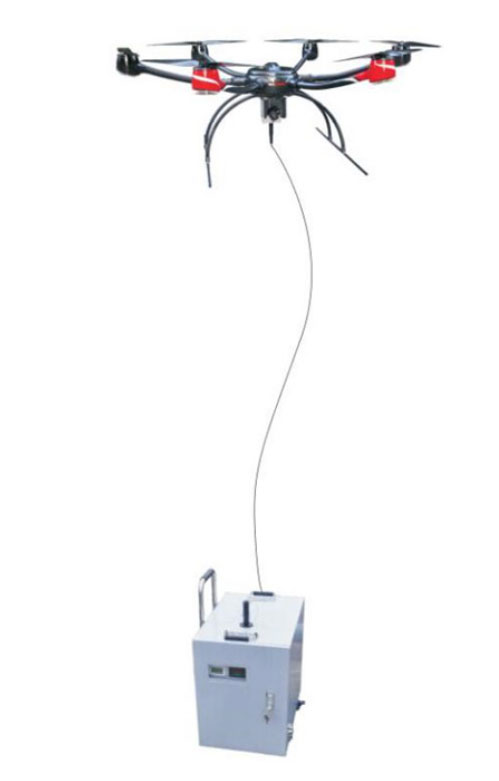

Tethered UAV System CN-TMOP-100

The companytethered UAV system is dedicated to long flight time surveillance missions. Secured by CN- X6L multi-rotor UAV, tethered vehicle power supply, intelligent cable release unit, and ground high power transfer module, it features for long endurance and high detection performance, which breaks the limited flight time powered by battery;

Technical Features

• 8 hours flight time
• 100 meters liftoff height
• High stable hovering
• Backup battery switch
• Intelligent cable release
• 3000W power interchange
• Safe high throughput of optical fiber
• transmission(optical fiber version)
• Automatic following

• Day and night missions
• Radio relay
• Crisis management
• Site protection
• Traffic surveillance
• Large-scale events security
• Forest surveillance
• Industry monitoring
• Air-quality monitoring

Flight Platform Main Technical Parameter

Max take-off weight	10-25Kg
Continuous Flight time	>8h
Tethered flight altitude	100m
Altitude hold	±2m
Hovering accuracy	±1.5m
Course angle accuracy	±3°
Emergency landing time	<1min
Deploy landing time	<4min
Drone Model	CN- X6L
Airborne power supply	1800W/3200W/6000W
Safe Backup battery	5200mAh 35C
Diagonal wheelbase	1600mm
Payload weight	3Kg/5Kg/10Kg

Ground Control Parameters

Cable length	120m
Cable release mode	key automatic
Input voltage	AC220V±10%@50Hz
Input power	<3000W
Output voltage	DC375V/DC400±5V
Output power	3000W/6000W
Weight	52kg
Dimension	620*400*600mm

Tethered Cable Parameters

Insulation	2000V
Tensile	>50kg
Hectometer resistant	<2.2R/1R
Carrying capacity	7A/15A
Weight	2kg/3.8kg@100m
Fiber Properties	single mode10Gb/s*

Remark: *fiber version

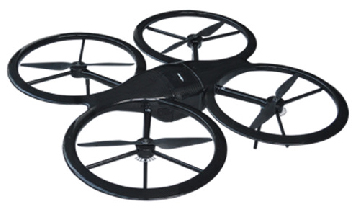

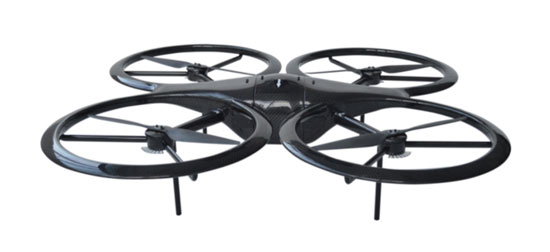

Quadcopter Safe Foldable Unmanned Aerial Vehicle(UAV) CN-Z4M-F

Features

• Foldable structure design, fast unfold less than one minute
• Full HD image real-time transmission, support HD 1080i/p
• Body outside adopts internal rotor bypass design for safe and easy use
• Intelligent flight control system, support manual precise control and automatically flight mode
• Carbon fiber composite material with high rigidity and light weight, flight time up to 40 minutes.

Parameter Index

Motor wheel base	665±10mm
Max wingspan	930mm
Standard take-off weight	4.4±0.2Kg
Effective payload	500g
Wind tolerance	8~10.8m/s
paddle	15 inch
Battery	14400mAh
Endurance	40min
Cruising speed	30km/h
Max speed	50km/h
Unfold size(L*W*H)	930*930*300 mm
Fold size(L*W*H)	930*386*560 mm

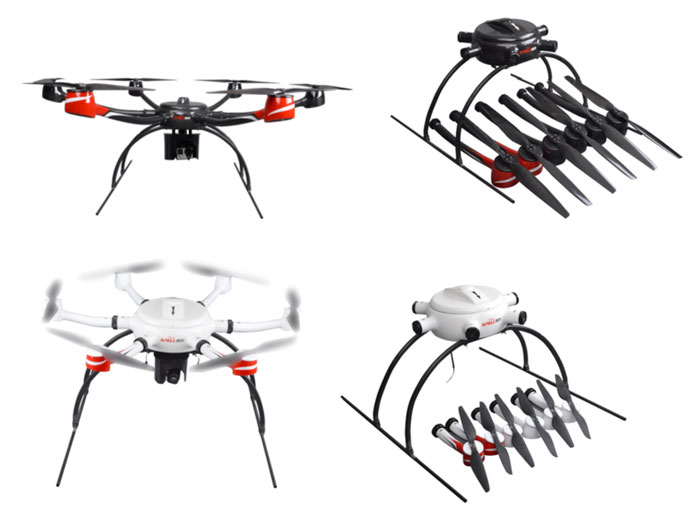

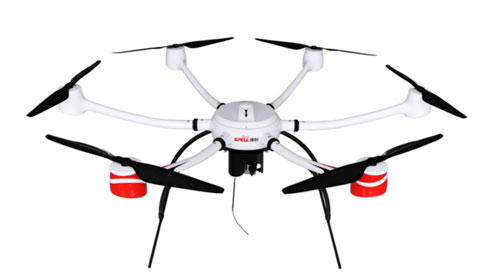

CN-X6L

Features

• Carbon fiber integrated molding with high rigidity and light weight; supports more than 65 minutes flight time with 500g payload
• Innovative upturned arm design for flying stability and good strength, ensuring wind tolerance up to 14 m/s.
• Detachable arms structure, quick plug-in design, get ready to fly within 5 minutes.
• Full HD 1080i/P real time video transmission, supports zoom, thermal, wide angle camera and so on payloads.
• Highly integrated rainproof gimbal unit with good rain performance, able to fly in the rainy day
• Intelligent flight control system with manual precise control and autonomous flight mode
• Finite difference GPS with high anti magnetism performance for accuracy position

Technical Parameters

Diagonal wheelbase	1600 mm
Max wingspan	2323+/-20mm
Standard take-off weight	11.5+/-0.2 kg
Max take-off weight	16+/-0.2kg
Max payload weight	≥5 kg
Flight time	≥65 min (@11.5kg)
Wind loading rating	13.9~17.2m/s
Max flight speed	15 m/s
Relative flight speed	3000 m(plain)
Max working altitude	5000 m
GPS position accuracy	vertical: ±1.5 m
Remote control distance	7km( up to the environment)
GS control distance	10 km( up to the environment)
Center Frame Packing Case Dimensions	1150 x 440 x 500 mm
Frame Arm Packing Case Dimensions	1120 x 540 x 380 mm

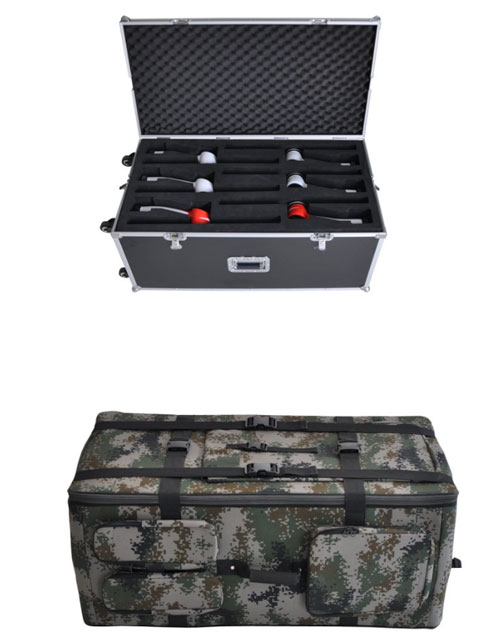

Package

CN- X6M and CN- X6L share the same center frame, change M and L size arms, you will get two drones.

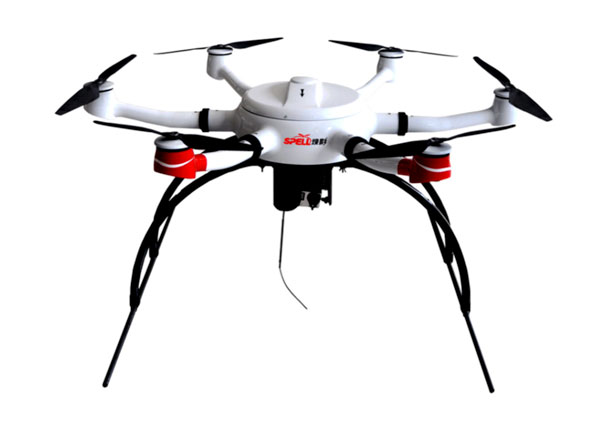

CN-X6M

Features

• Carbon fiber integrated molding with high rigidity and light weight; supports more than 50 minutes flight time with 500g payload
• Innovative upturned arm design for flying stability, ensuring wind tolerance up to 12 m/s.
• Able to fly at elevation of 5000 m (16500 ft).
• Detachable arms structure, quick plug-in design, get ready to fly within 5 minutes.
• Full HD 1080i/P real time video transmission, supports zoom, thermal, wide angle camera and so on payloads.
• Highly integrated rainproof gimbal unit with good rain performance, able to fly in the rainy day
• Intelligent flight control system with manual precise control and autonomous flight mode
• Finite difference GPS with high anti magnetism performance for accuracy position

Technical Parameters

Diagonal wheelbase	955+/-10mm
Max wingspan	1412+/-20mm
Standard take-off weight	10+/-0.2kg
Max take-off weight	13+/-0.2 kg
Max payload weight	≥3 kg
Flight time	≥50 min (@10kg)
Wind loading rating	10.8~13.9 m/s
Max flight speed	12 m/s
Relative flight speed	2000 m( plain)
Max working altitude	5000 m
GPS position accuracy	vertical: ±1.5 m horizontal: ±2 m
Remote control distance	7 km( up to the environment)
GS control distance	10 km(up to the environment)

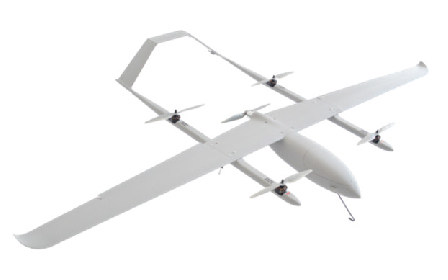

CN-GX350 VTOL Fixed-wing UAV

The CN- 350 VTOL fixed-wing UAV, with its long endurance, fast speed and long distance feature, is a perfect combination of multi-rotor and fixed-wing flight control technology for a vertical take-off and landing.

Since take-off runway and large airspace are unnecessary, it can be operated on ship deck, narrow airspace, mountains, jungles and complex urban terrain. In autonomous flight mode, it can complete the cruise, flight state transitions and vertical take-off & landing without human intervention.

Hybrid Version

Max take-off weight	14.4KG
Empty weight	8.1KG
Max payload weight(with battery)	6.3KG
Engine	21cc Electricity oil
Fuel tank	2.5L
Battery	14400mAh
Flight time(with 14kg)	4h
Cruising speed	90km/h
Max flight speed	110k/h
Stalling speed	72km/h

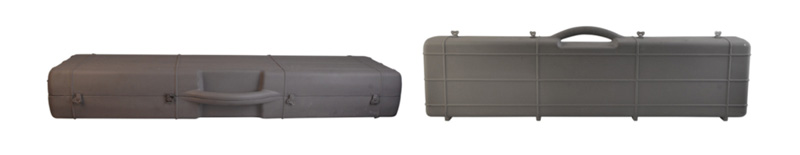

Packing Size	1500mm×210mm×380mm

Electric Version

Max take-off weight	14KG
Empty weight	87G
Max payload weight(with battery)	7KG
Motor	500kv
Battery	14400mAh
Flight time(with 14kg)	2h
Cruising speed	72km/h
Max flight speed	120k/h
Stalling speed	65km/h
Packing Size	1500mm×210mm×380mm

Fuelage Specification

Wingspan	3500mm
Fuselage length	1800mm
Height	500mm
Wing area	70dm2
Runway	5m×5m
Takeoff/Landing	VTOL

Features

• Easy to assemble and operate
• Vertical take-off and landing, without limitation of space
• Resistance to harsh weather conditions
• Diesel-electric version and electric version optional
• All carbon fiber composite material, industry standard architecture
• Compatible with PC station, suitable for open source of autopilot system

CN-GX350 VTOL Fixed-wing UAV

The CN- 350 VTOL fixed-wing UAV, with its long endurance, fast speed and long distance feature, is a perfect combination of multi-rotor and fixed-wing flight control technology for a vertical take-off and landing.

Since take-off runway and large airspace are unnecessary, it can be operated on ship deck, narrow airspace, mountains, jungles and complex urban terrain. In autonomous flight mode, it can complete the cruise, flight state transitions and vertical take-off & landing without human intervention.

Hybrid Version

Max take-off weight	14.4KG
Empty weight	8.1KG
Max payload weight(with battery)	6.3KG
Engine	21cc Electricity oil
Fuel tank	2.5L
Battery	14400mAh
Flight time(with 14kg)	4h
Cruising speed	90km/h
Max flight speed	110k/h
Stalling speed	72km/h
Packing Size	1500mm×210mm×380mm

Electric Version

Max take-off weight	14KG
Empty weight	87G
Max payload weight(with battery)	7KG
Motor	500kv
Battery	14400mAh
Flight time(with 14kg)	2h
Cruising speed	72km/h
Max flight speed	120k/h
Stalling speed	65km/h
Packing Size	1500mm×210mm×380mm

Fuelage Specification

Wingspan	3500mm
Fuselage length	1800mm
Height	500mm
Wing area	70dm2
Runway	5m×5m
Takeoff/Landing	VTOL

Features

• Easy to assemble and operate
• Vertical take-off and landing, without limitation of space
• Resistance to harsh weather conditions
• Diesel-electric version and electric version optional
• All carbon fiber composite material, industry standard architecture
• Compatible with PC station, suitable for open source of autopilot system

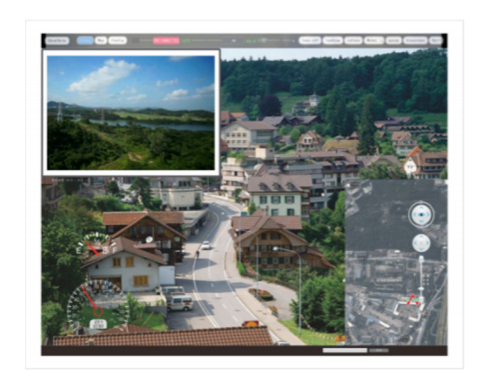

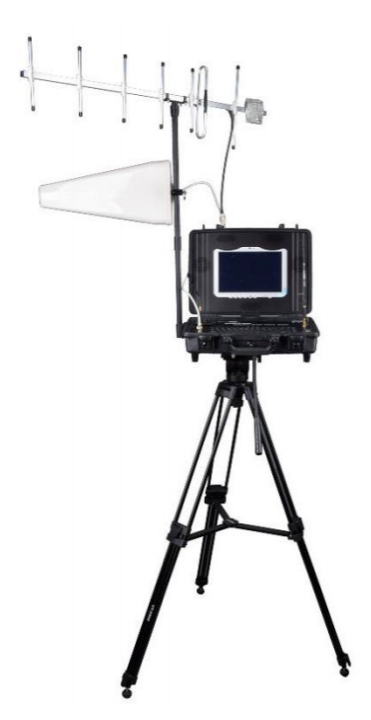

Integrated Ground Station System SPELL-IG

The Integrated ground station system is a multi-function system integrated with highdefinition image receiving & display, data transmission link and multi-function ground station. Using the SPELL series, aircraft can easily achieve FPV flight and control.

Advantages

1. Real-time video display; can reference Google earth Map and locate the drone's position simultaneously.
2. Google earth full screen displays accurate waypoint task settings and real-time waypoint modifications.
3. User friendly operating interface; one key take-off/ return home, one key landing / emergency landing.
4. Flight path / SD card recording and playback for flight courses.
5. Parameter configuration including voice alarm, video file path setting, etc. Oblique photography parameters setting; Compatible with Joystick remote control.
6. Support h4.64$H.265 HD real-time decoding, support multi code stream transport protocol.

Features

1. Ground station system using Intel i5 processor, powerful performance and smooth operation;
2. High-luminance screen, low reflectivity, visible in direct sunlight without the need for lens hood;
3. Features track ball keyboard and high-precision electromagnetic stylus, easy operation;
4. Built-in 900 MHz radio module with automatic frequency hopping, effectively avoids interference;
5. Simultaneous airborne HD transmitter image receiving and screen display;
6. HDMI video output, external connection with large screen display;
7. Local video recording;
8. Portable suitcase structure, equipped with tripod, small size and simple packing & transportation;
9. High-gain antennas for longer distance image and data transmission; easy to control.

Technical Parameters

Model	Whole Machine
Ground station board	CPU	Intel I5
	Storage	8GB
	Hard disk	SSD 128G
	System	Windows 8.1 64bit
Digital radio	Frequency range	FH 902-928 MHz
	Power output	≤ 1W
	Receiving sensitivity	≤−98 dBm @115200bps
	Bit rate	115200bps
Image receiving	Frequency range	170 MHz-860 MHz
	Rx sensitivity	≤−92 dBm @8 Mbps ≤−98 dBm @2 Mbps
	Bandwidth	2/4/6/7/8 MHz optional
Output interface	USB	3Unit
	HDMI	2Unit
Display screen	10.1-inch LCD	Anti Glare Screen
	Resolution	1920*1200
	Lightness	800cd/m2
Battery time	>2 HRS

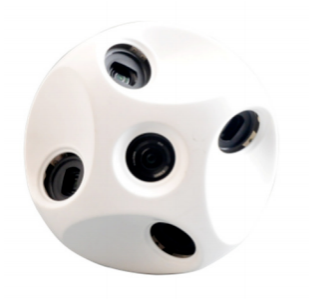

3D Surveying & Mapping Oblique Camera CN- QXSY-5E-A

Oblique aerial photography technology is a newly developed high technology based on the remote sensing survey and mapping in recent years. It breaks through the limitation of the traditional aerial survey with single camera which only shoots vertically to get orthogonal image.

With multiple sensors in one flight platform taking the real images with space information from vertically and tilt angles, it achieves a fully display of ground object texture, which perfectly restores the real and intuitive world to users. It can realistically reflect the appearance, location and height of the object and property, enhanced high immersive display by a real 3D data. Besides, it brings revolutionary improvement in the field of surveying and mapping by using UAV and automatic modeling system.

In order to offer good use experience for users, it has added latest new functions as follows:

1. SD card with POS recording functions, great convenient for exporting out position data;
2. External power source charger convenient for charging avoids inner battery without enough power.
3. Convenient export out all the cameras photos and POS data at the same time from one USD;
4. Inner camera structure angle adjustable( 42~43 angle)
5. One key shooting mode switchable, suitable for different applications.

Product features:

1. CCD sensor* 5
2. CCD sensor dimension: 15.4*23.2mm
3. Minimum exposure interval: 3.5s
4. Prime lens focal distance: 20mm
5. Pixel: 20.1Million
6. Storage: 160G
7. Anti-shake: Optical anti-shake and inner structure machinery anti-shake technology
8. CCD on-off switch: 5 CCD sensors on-off at the same time
9. Camera charging: all external power source charging, long working time
10. Oblique camera angle: adjustable 42∼43 angle
11. Exposure mode: periodic exposure; exposure triggered by outer signal
12. 5 cameras' photos and POS data can be read from only one USB
13. Work humidity: 95%
14. Weight: 2.5kg.

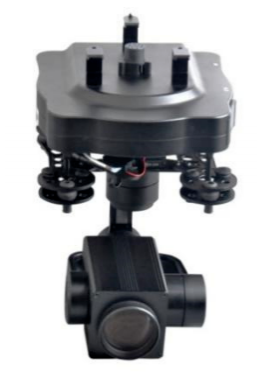

30 Times Optical Zoom camera YT-PL-B30

Integrated 30 times optical zoom camera with 5 million pixels HD lens, HDMI signal output and Maximum video output resolution up to 1920×1080P/60, it has the advantages of low power consumption, big aperture, fast automatic focus, stable and clear image and so on; Fast and quick use by mounting the payload to the center plate of Unmanned Aerial Vehicle( UAV) for various tasks; It is widely used for such as areas as danger detection, technical investigation, border patrol, search and rescue, road monitoring, geographical surveying and mapping, power line inspection, forest fire prevention, Earthquake relief and so on.

Technical Parameters

Self-stabilizing
Working voltage	DC12±0.5V
Working temp	−10∼50°C
Pitch motion range	−90°∼90°
Roll motion range	−85°∼85°
Level motion range	−150°∼150°
Angle jitter	Pitch, roll: 0.02° Level: 0.03°
30 times HD camera technical parameters
Sensor	1/3 inch, 3 million pixels CMOS
Video output resolution	Max: 1920*1080p/60
Lens	30 times optical zoom
Focus range	f=4.5∼135mm
Fast focus	Focus time <1s
Dymanic range	105db
Output interface	HDMI 1.3
Control	PWM, serial port
Controllable rotational range	Roll: +/−39° Tilt: −125°∼+125°
Transmitter frequency	328∼352MHz/ 560∼700MHz(Customizable)
Image clearness	HDMI1080i/p
Image delay	Lowest 260ms
Weight	<= 1.27kg
Dimension	163mm*154mm*230mm

Air Goods Release Unit

As an independent, fast assembly and quick use unit, the air release unit is able to mount various goods as life vest, survival kit, stun grenades, tear shell, smoke shell and so on. During the drone flight process, fixed point release or high altitude release tasks could be achieved by remote control of the air release unit. The max payload weight up to 5KG, which enables it widely use in emergency rescue, anti-terror, security and defense and so on.

Technical Parameters

• Work voltage: DC12V∼12.5V
• AIr Release Mode: Close, Open, Half-open
• Payload: MAX 5KG
• Weight: 105±2g
• Dimension: 66mm×94mm×42mm

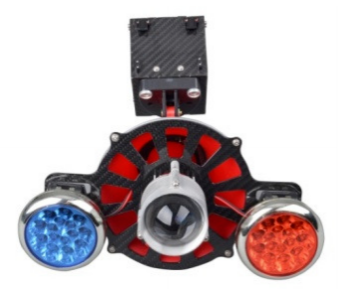

Air Speaker with Light Alarming Unit SG-480M-A

As an air speaker and communication unit mounted with Unmanned Aerial Vehicle( UAV), work height up to 50-100 meters and communication distance more than 500 meters, the air speaker with light alarming unit makes great effect on such occasions as forest fire prevention, fire rescue, disaster search and relief, traffic security, forest care and so on.

Technical Parameters

Working current A	1.4A@12V (No speaker) 2.5A@12V (Air speaker)
Working voltage V	DC12∼16.8V
Speaker power	Max 25W
Loudspeaker sound transmission audible distance	200m: Max 65db 100m: Max 80db 50m: Max 90db 25m: Max 120db The drone itself will cause certain noise when in fly; the loudspeaker has directional feature; The dB value can't be fully used for evaluating the features of loudspeaker.
Audio work frequency	480MHz or 433MHz (optional)
Detect light power	12W
Weight	0.85KG
Dimension	200*220*150mm

Drone Cluster Intercom Repeater System CN- JQ-TR

Regular emergency communication equipments can not work normally in remote mountainous areas because of the poor infrastructure facility and bad geographical environments, which can not ensure the proper disposal of sudden emergencies. It is difficult to set up a fixed repeater on the ground which has a small coverage range but high cost, all which brings the research of drone vehicle PDT transfer communication equipment. Compared with the traditional ground mobile repeater, the flexible repeater based on the drone possess the advantages of full coverage, strong antiinterference, high compatibility and so on. It guarantees a flexible and prompt emergency rescue in severe environment by offering efficient and stable communication for emergency command site.

Features

• High performance, good flexibility: fast and quick installation to the UAV; Live mobile command network will be made flexibly according to the dispatching system; More suitable for the emergency communication site in the blind environment.
• Wide coverage: easily mounted to the UAV, coverage radius more than 20km in complex city environment.
• Small and portable design: embedded and compact design, with built-in mini duplexer, save space, small size and light weight.
• High radiation efficiency: single high gain antenna for two-way communication, for high efficient radiation and long distance transmission.
• USB port: USB data control line for frequency updates and parameters configurations, fast and easy operation.
• Communication protocol: support data DMR TierII and analog communication protocol.
• Communication protocol: support data DMR TierII and analog communication protocol.
• Flexible IP Networking( extended function): IP relay network can connect the several scattered transfers with same or different frequency bands via IP network to be a wireless communication network without territory restriction. Mobile terminal will access to automatic roaming for voice and data communication.

Technical parameters

• Work voltage: DC12V∼16V
• Work frequency: 350-390MHz/400-470MHz
• Channel quantity: 16
• Channel interval: 25/20/12.5KHz
• Frequency rating: 0.5ppm
• Antenna impedance: 50Ω
• Covering radius: ≥20Km (city environment)
• Host machine dimension: 185x164x65.5mm
• Weight: ≤1.3kg

Dual Day/night HD Zoom Camera YT-T3D-SG

Integrated two lens of visible light and thermal imagery, the dual camera can output visible light and thermal imagery videos simultaneously. Among which, the thermal imagery len supports measuring temperature of focus point, highest temperature point tracking, with accuracy of temperature measuring within ±2%. Infrared imagery and video processing software will go on the analysis and process of the infrared images and video gathered by thermal infrared imager. It can realize the image’s point, line, and frame temperature analysis and generates a analysis report. It is widely used in such areas as forest fire prevention, search and rescue, border patrol, Earthquake relief and do on.

Technical Parameters

Self-stabilizing gimbal
Working voltage V	DC12±0.5v
Detector type	Uncooled VOx Micro-meter Bolometer
Thermal camera resolution	640*512
Len	57°×44°
Visual angle	Horizontal: 56°
Wave length	87.5 - 13.5µm
Temperature measuring function	Focus point temperature measuring, highest temperature point tracking
Temperature measuring accuracy	±2%
Temperature measuring range	−40∼300°C
Visible light camera Resolution	1920*1080
Frame rate	1080P/30Hz
Len visual angle	Horizontal: 90°
Video output	HDMI
Image delay	Min 260ms
Weight	≤600±5g
Dimension	140mm*137mm*136mm

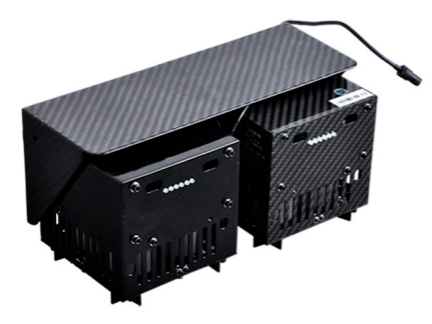

Gas Detection Unit TC-8-AB

As a new intelligent detector dedicated to environmental protection industry, the gas detection unit mounted with multi-rotor drones is able to make the detection of 8 kinds of gas like Cl₂, SO2 and so on. The gas type and density will be real-time displayed on the integrated ground control station, which is great convenient for users to learn about the density of harmful gas and make an effective emergency measurement promptly. Using a drone mounted with gas detection unit for atmospheric environment monitoring work features for high efficiency, fast and flexibility, easy use, low environment restriction, high precision and so on. It can take on high risk flight tasks, which offers a new choice for atmospheric environment monitoring.

Technical parameters

Gas	Measuring Range	Resolution Ratio
Cl2	0∼100ppm	0.1ppm
CO	0∼2000ppm	1ppm
SO2	0∼2000ppm	1ppm
NH3	0∼100ppm	0.1ppm
H2S	0∼500ppm	0.1ppm
HCl	0∼200ppm	1ppm
NO2	0∼20ppm	0.1ppm
NO	0∼1000ppm	0.5ppm

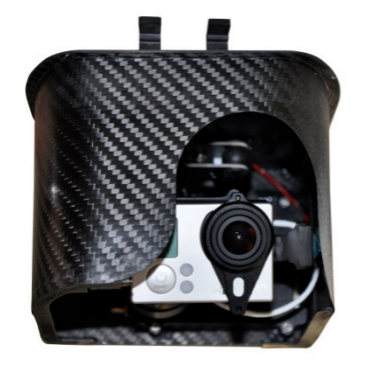

Gopro Camera Unit YT-FY-GX

Highly integrated by rainproof cover, self-stabilizing PTZ, GOPRO HD sport camera and Unmanned Aerial Vehicle( UAV) HD image transmission system, GOPRO camera gimbal suite could be used for all-weather stable and clear video gathering and data transmission when mounted with multi-rotor drones; Fast and quick use by mounting to the center plate of UAV easily. Its rainproof feature makes it widely use in such areas as danger detection, technical investigation, border patrol, search and rescue, road monitoring, forest fire prevention, Earthquake relief and so on.

Technical Parameters

Self-stabilizing Gimbal
Working current A	Quiescent current: <0.3A(@12V) Dynamic current: <0.6A(@12V)
Input voltage V	3S∼6S(12V∼24V)
Angle control accuracy	±0.1°
Max controllable rotating speed	ROLL: ±30°/s TILT: ±130°/s
Controllable rotating angle	ROLL: ±39° TILT: −130°∼+50°
HD Gopro Camera
Aperture	F2.8
Recording formats	H.264, MP4
Video input	1080p: 1920x1080 720p: 1280x720
Transmitter frequency	328∼352MHz/560∼700MHz(customizable)
Weight	<500g
Dimension	140mmx137mmx136mm

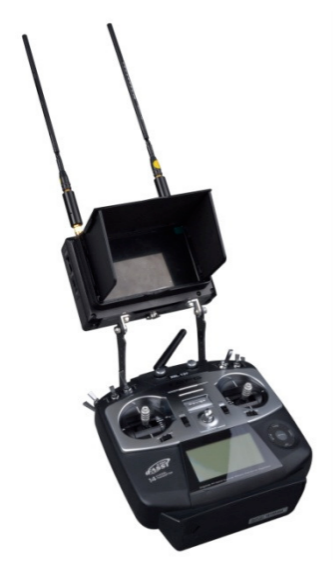

R760-FPV Handheld Video Receiver

RF	Working current A	≤1.3A @DC7.4
	Charge current A	≤1.5A @CC-CV
	Working voltage V	DC 8.4V
	Rx input frequency range	250 MHz ∼ 800 MHz (2/4/6/7/8M)
	RF bandwidth	2/4/6/7/8 MHz
	Rx sensitivity	≤−92 dBm @8M
	Modulation	COFDM
	Video resolution	1920 × 1080 × 60i/50i (MAX)
Video interface	Video output source	HDMI A type support 1.4a
	Recording	TF CARD
	Power interface	DC φ5 mm/2.1 mm charging port
Others	Screen size	5 inch (Folding shade optional)
	Screen brightness	500 cd/m2
	Dimensions	145 mm × 94 mm × 35 mm (w/o antenna)
	Battery capacity	3400 mAh @7.4V
	Working time	>2h @25°C

Low Latency Zoom Camera YT-T3D-B10

Low latency zoom camera suit is highly integrated by rainproof cover, self-stabilizing PTZ, 10 times zoom camera and drones HD image transmission system. Mounted with multi-rotor drones, it could be used for all-weather stable and clear video gathering and data transmission tasks. Fast and quick use by mounting below the drone center frame easily for various tasks, it could work in the rainy day, which makes it widely use for such as areas as danger detection, technical investigation, border patrol, search and rescue, road monitoring, forest fire prevention, Earthquake relief and so on.

Technical Parameters

Self-stabilizing
Working current	Steady current: <0.3A(@12V) Dynamic current: <0.6A(@12V)
Working voltage	DC12+/−0.5V
Max controllable rotate speed	Roll: +/−200°/s Tilt: +/−20°/s
Angle control accuracy	±0.02°
Controllable rotational range	Roll: +/−39° Tilt: −125°∼+125°
Sensor	1/3 inch, CMOS
Video output resolution	Max: 1920*1080p/60
10 times zoom camera parameters
Image sensor	1/3 progressive scan CMOS
Effective pixel	About 4.08million pixel
Video output(HD)	Max: 1080p/60
Min illuminance	0.5 1*(1/30sec,F1.8, 50%)
Optical zoom	10 times
Zoom move time	<=1.5 s
Horizontal angle	62∼6.5°
Transmitter frequency	328∼352MHz/ 560∼700MHz(Customizable)
Image clearness	HD1080i/p
Image delay	Lowest 260ms
Weight	670+/−5g
Dimension	140mm*162mm*136mm

MESH Relay Unit YT-KW-TR-GX

MESH relay suite is highly integrated by rainproof cover, self-stabilizing PTZ, GOPRO HD sports camera and drone MESH relay image transmission module. Mounted with multi-rotor drones, it could be used for all-weather stable and clear video gathering, data relay and data transmission tasks. MESH relay image transmission module features for no host station, Ad hoc Network, self repairing, selfbalancing, auto expand and so on. Adopting same frequency group Network technology, supporting multi terminals online simultaneously( include base station), MESH relay system is suitable for one-to-one and one-to-many communications under multi-users situation.

Technical parameters

Power source

• Work voltage: DC12V∼14.8V
• Work current: ≤3A@DC12.5V

Relay image transmission

• Work frequency range: 1430∼1444MHz (each step 1MHz)
• Channel center frequency: 1437MHz
• RF bandwidth: 2.5/3/3.5/5/6MHz
• Output power: 33dBm/IL=3
• Power adjustable range: 20dB
• Modulation: COFDM
• Two-way voice input: Standard MIC/HEAD 3.0 joint
• Two-way voice coding way: G726 32kbps audio
• Two-way voice input: Standard MIC/remote

Appearance

• weight: 1.39Kg
• Dimension: 156mm×210mm×170mm

Panorama Camera CN- UVT-H1/GX-6

As an increasingly popular new vision technology all around the world, panoramic technology brings a brand new sense of reality and interactive feeling for users. Panorama: a full display of all scenes within 360 spherical range. The plane pictures will be processed by software to be the 360 panorama, which brings users a 3-dimensional sense. Scene: real scene, maximizes the authenticity of the scene.

360 degree panorama advantages:

1. Strong sense of authenticity, without visual dead-end zone. Horizontal 360 degree, vertical 180 degree, all-round display.
2. Users could amplify and shrink the view randomly by dragging the mouse.
3. Quick photo speed, small data size, low hardware requirements, fast imaging speed. One trigger could capture 6 pictures for one scene, whole scene will be full displayed within 1or 2 minutes.
4. High clearness full screen scene makes the details perfect.

Camera Parameters

• CCD (Sensor) quantity: 6
• CCD (Sensor) size: 1cm * 1cm
• Photosensitive element: CMOS
• Continuous capture mode: 1s/30 pcs, 2s/30pcs, 2s/10 pcs, 3s/10pcs, 1s/5 pcs, 1s/3pcs
• Focal length: 3mm
• Total pixels: 12 million *6
• Total storage: 32G * 6
• Battery: rechargeable Li-ion battery
• Tilt camera angle: 35°
• Exposure mode: trigger exposure
• Exposure compensation: Portune mode
• ISO sensitivity: 800/400/200/100 (Portune mode)
• White balance: auto/3000K/5000k/6500k (Portune mode)
• Total weight: 1.2kg
• Storage media: Micro SD

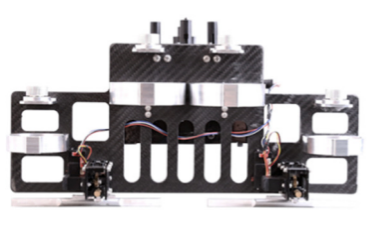

Stun Grenades, Tear Bomb Release Unit YT-PT-ZB/CL

This unit could be used to mount and release the nonlethal weapons like stun grenades, tear bombs in special occasions such as the mass emergencies disposals, anti-terror, security and defense and so on.

Power source

• Work voltage: DC12V∼16.8V
• Work current: 2A@12V DC

Payload: Bomb types

• 48mm tear bomb;
• 64mm tear bomb;
• 48mm stun grenades;
• 64mm stun grenades

Quantity

• 4 pcs simultaneous(48mm: tear bomb, stun grenades; 64mm: tear bomb, stun grenades)

Release modes

• twice, each time release 1 pc 48mm and 1 pc 64mm bomb respectively

Remote control distance

• 5KM no interference
• Dimension of 64mm bomb: φ64*138mm 400g
• Dimension of 48mm bomb: φ48*89mm 120g

Appearance

• Weight: 585g
• Dimension: 335mm×85mm×163mm

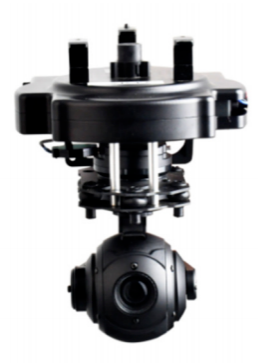

Tenfold Times HD Optical Zoom camera YT-F3D-B10

Integrated 10 times optical camera, with HD image output and maximum video resolution up to 1920×1080 p30, it features for low power consumption, large aperture, fast automatic focus and so on. It is widely used for such areas as danger detection, technical investigation, border patrol, search and rescue, road monitoring, forest fire prevention, Earthquake relief and so on.

Technical Parameters

Working voltage	DC12±0.5V
Working current	250mA
Work environment temp	−20°C∼50°C
Controllable rotational range	pitch angle: −100∼+45° Pointing: −240∼+240°
Posture control accuracy	±0.02°
Sensor	4 mega-pixel camera(Effective pixel) 1/3 colorful CMOS 4(2688*1520 pixel)
Lens	10 times optical zoom
Quick focus	Focus time<1.5 s
Video storage mode	MOV
Transmitter frequency	328∼352MHz/ 560∼700MHz(Customizable)
Image clearness	HD1080i/p
Image delay	Lowest 260ms
Storage card	Max support 32G
Weight	≤8kg
Dimension	154mm*154mm*195mm

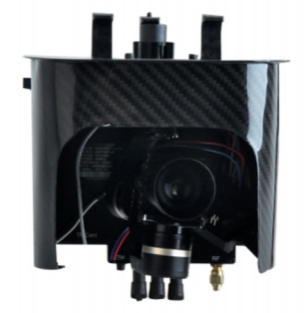

Thermal Camera Unit YT-T3D-RX

Thermal camera suite is able to make regional thermometry precisely by real-time displaying the isothermal region images represented by color. Besides, it has video full-frame measurement temperature and regional maximum temperature point tracking function with accuracy within ±2%. Infrared imagery and video processing software will go on the analysis and process of the infrared images and video gathered by thermal infrared imager. It can realize the image’s point, line, and frame temperature analysis and generates a analysis report.

Technical Parameters

2 axis brushless high stabilizing gimbal
Working current A	Quiescent current: <0.3A(@12V) Dynamic current: <0.6A(@12V)
Working voltage V	DC12±0.5v
Detector type	Uncooled focal plane array (UFPA)
Video output	640*512
Transmitter frequency	560∼700MHz
Focal length	13mm
Visual angle	Horizontal: 45° Vertical: 37°
Wave length coverage	7.5∼13.5um
Image delay	260ms
Weight	560+/−5g
Dimension	140mmx162mmx136mm
